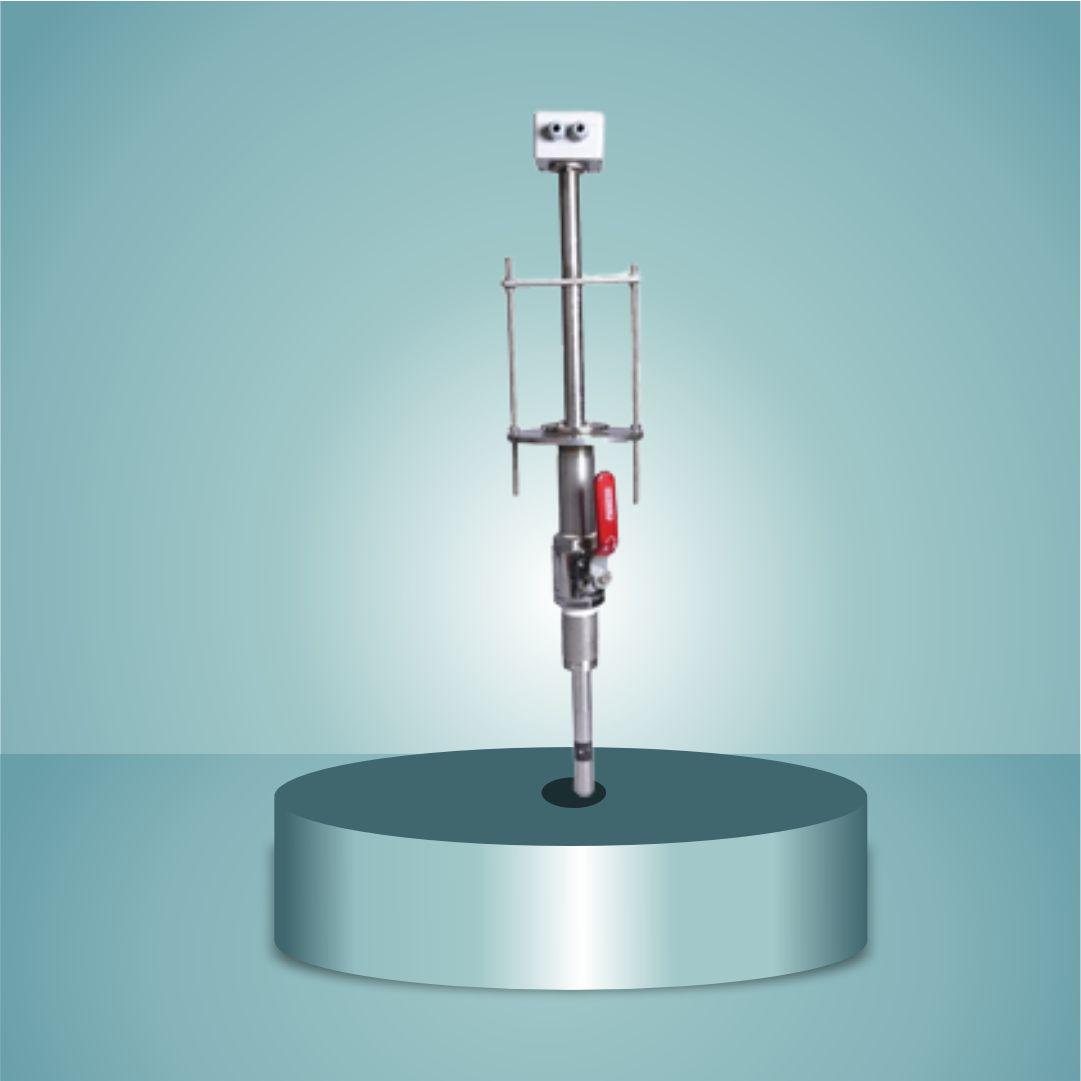

Insertion Type: model-SFIC-INS
Insertion Type: model-SFIC-INS
SPECIFICATIONS:
● Insertion Type: Model - SFIC -INS
● Insertion Pipe: SS 316 / 304
● Electrode: HASTELLOY ‘C’
● O’ Seal Assembly: SS304, 1 no each
● Seal Guide Plate: SS 304, 1 no each
● Ball Valve: 1¼″ SS 304, 1 no each
● Tie Rod: SS304, M8 threading, with nut, 4 no. each
● Socket: SS 304 = 1¼” / 1¼”, 1 no each
● Barrel Nipple: SS304, 1¼″ × 6″, 2 no. each
● Temperature: Max 90°C
● Protection: IP65
● Input Supply: 230V AC
● Output: 4–20mA
● Housing: AL DIE. CAST
● Pressure: 10 bar
● Electrical Connection: PG9 4 GLAND
● Accuracy: ±1% Reading
● Inbuilt Micro-processor Based Flow Indicator & Totalizer
● Flow Indicator Totalizer: LCD / LED Model – SFIC -TC
